AiM Sportline

AiM Solo 2

AiM Solo 2

$459.00 USD
$459.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details



Solo 2 User Guide

Solo 2/ Solo 2 DL Technical Data

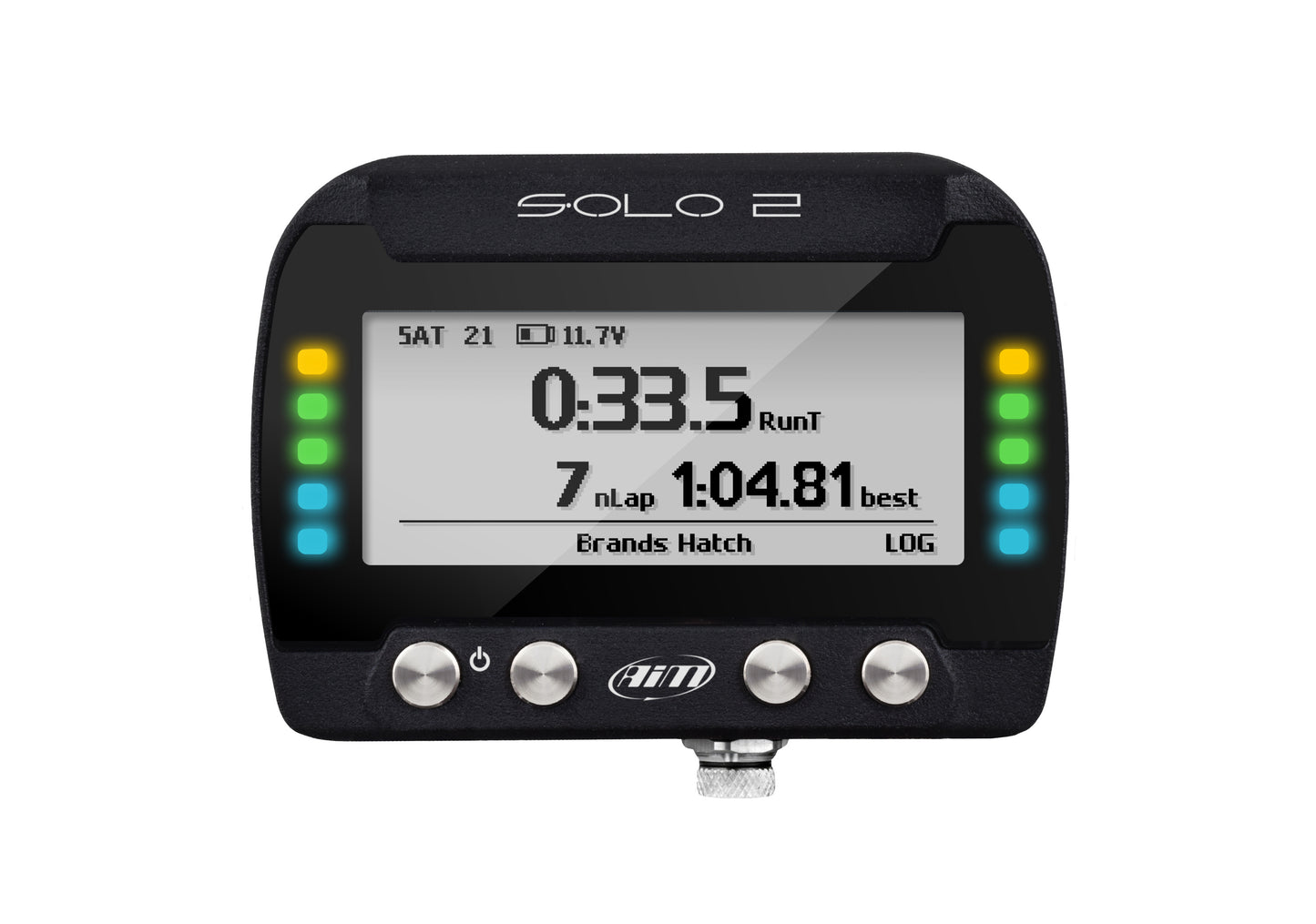

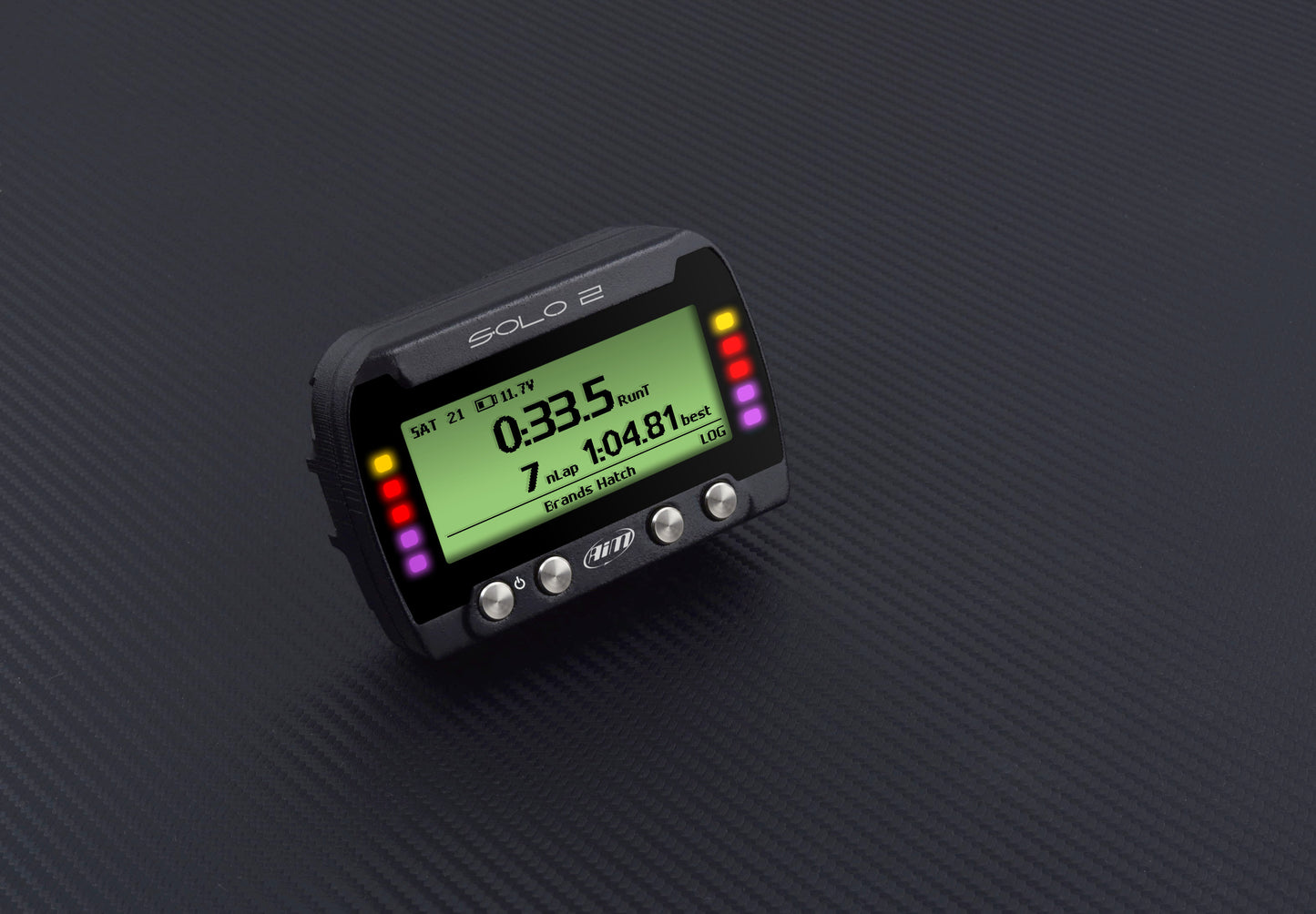

Solo 2 features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform. It calculates, shows and record

  • Lap times
  • Sector times
  • Position and vehicle speed
  • 3D acceleration and gyro

Main Features

Lap Times and Sector Times

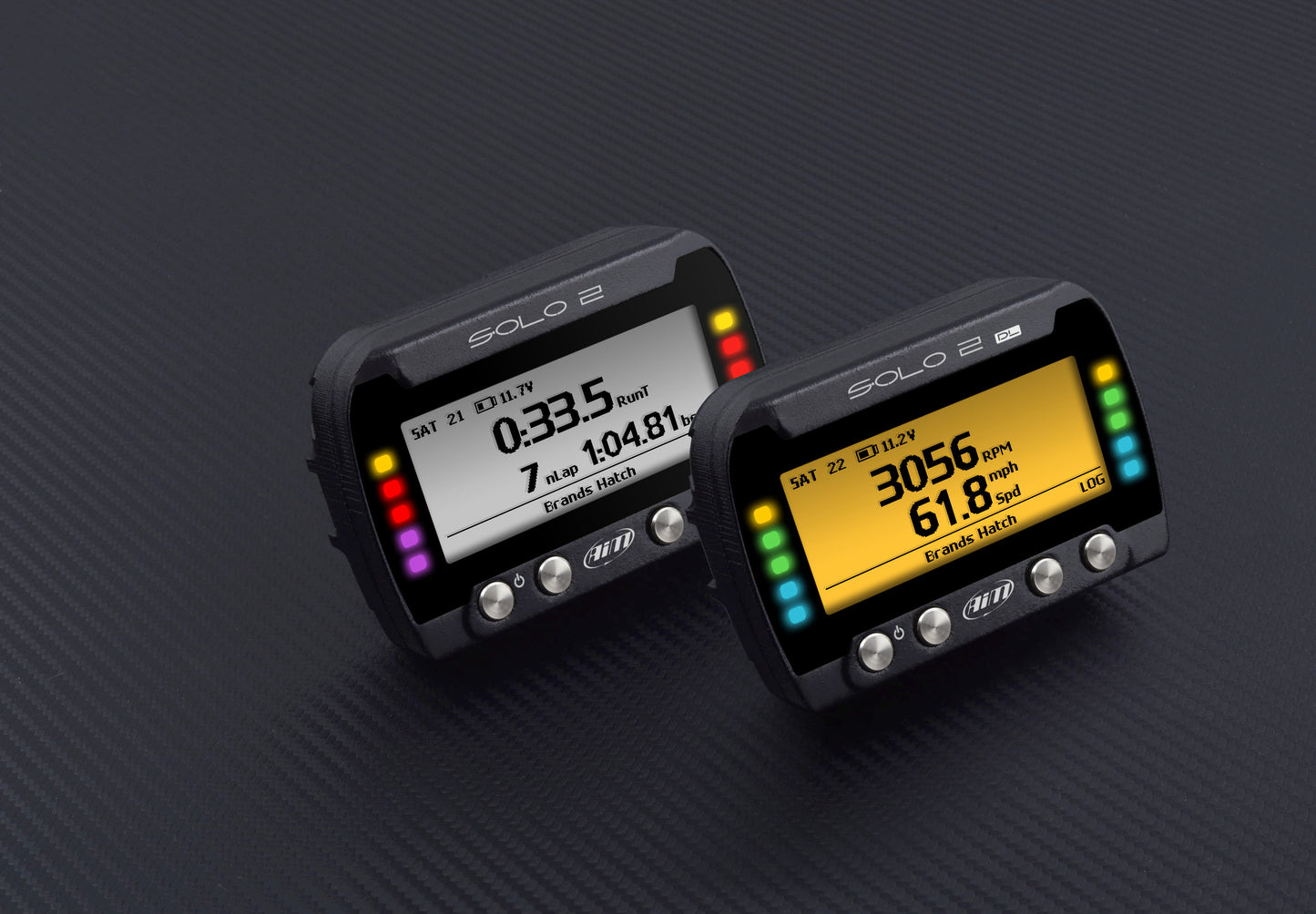

Solo 2 and Solo 2 DL automatically calculate the lap times, thanks to their internal database including thousands of tracks all over the world: when you turn them ON, they automatically recognize the track where you are going to drive and get the information about the Starting Line Position and the Time Zone.

Position and speed on track
Position and speed on track are recorded 25 times per second. Thanks to the four constellations that Solo 2 and Solo 2 DL manage, the precision is generally under the 0.5 mt.

3D Accelerations and Gyro - The inertial platform at 100 Hz gives the possibility to calculate roll, pitch and yaw.

Predictive Lap Time, based upon:

  • Best lap of the day
  • Best lap of the session
  • Previous lap
  • User reference lap

Types of tests:
  • Speed Races on Open or Closed Circuits
  • Performance tests

Choose the type of performance you like to evaluate, selecting:

  • The speed limit:
    • 0-60 mph
    • 60-0 mph
    • 0-100 Km/h
    • 0-160 Km/h
  • Or the distance:
    • 1/8 mile
    • 1/4 mile
    • 100m
    • 150 m
    • 400 m
    • 1000 m

After test on screen analysis
Solo 2/Solo 2 DL show the proper information during the test and powerful data review immediately on your screen

In-depth analysis on RaceStudio 3
You may analyze your data using our professional RaceStudio 3 software, comparing data that cannot be show on Solo 2 and Solo 2 DL displays.

ECU connection
Choose the protocol for connection the Solo 2 DL to your engine among thousands of protocols available.


If you can't find the protocol for your vehicle in our huge database, you can also develop your own protocol in just few clicks thanks to the CAN builder feature, then your Solo 2 DL will receive and record hundreds of data of your engine.
