AiM Solo 2 DL

Solo 2 DL User Guide

Solo 2/ Solo 2 DL Technical Data

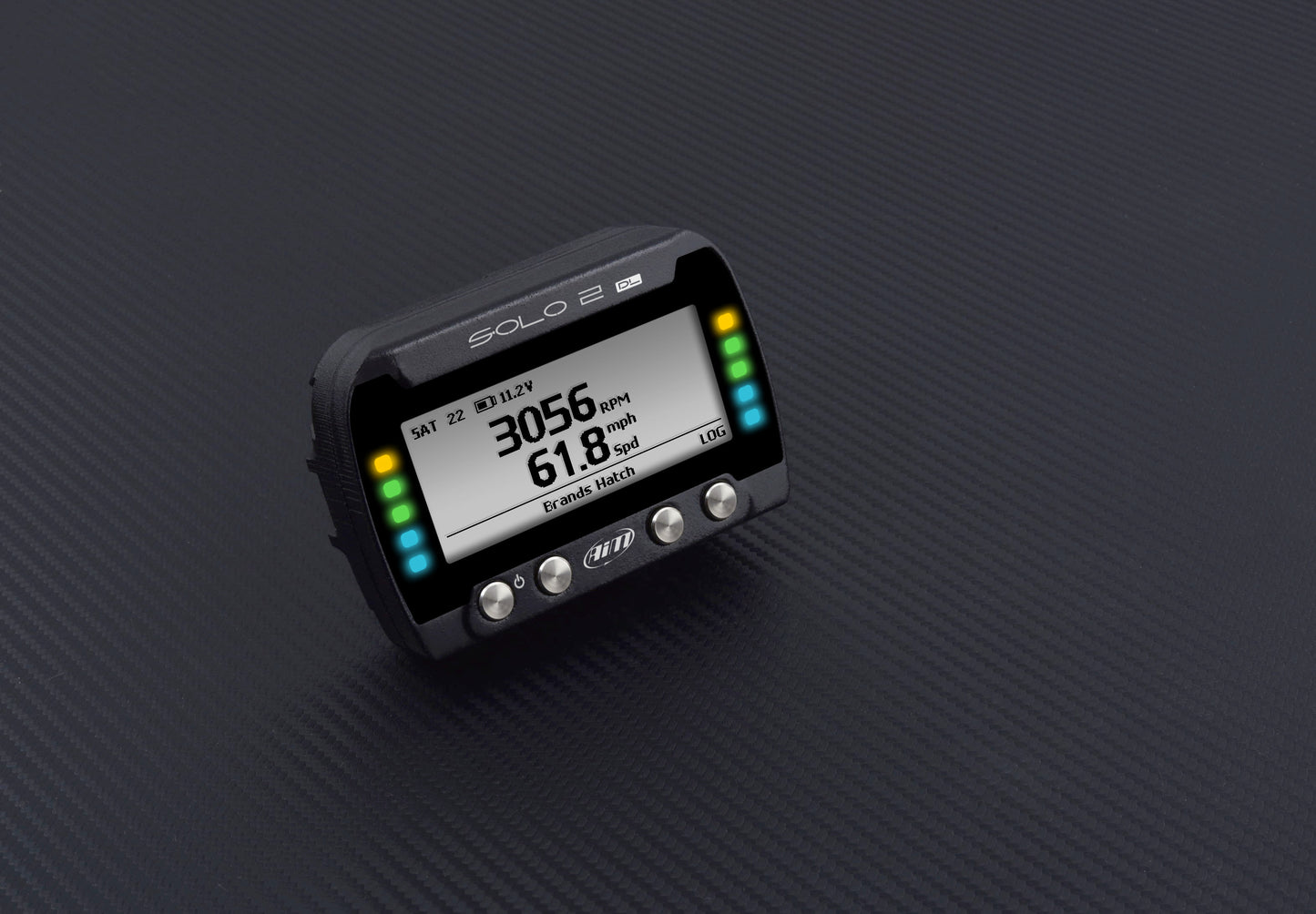

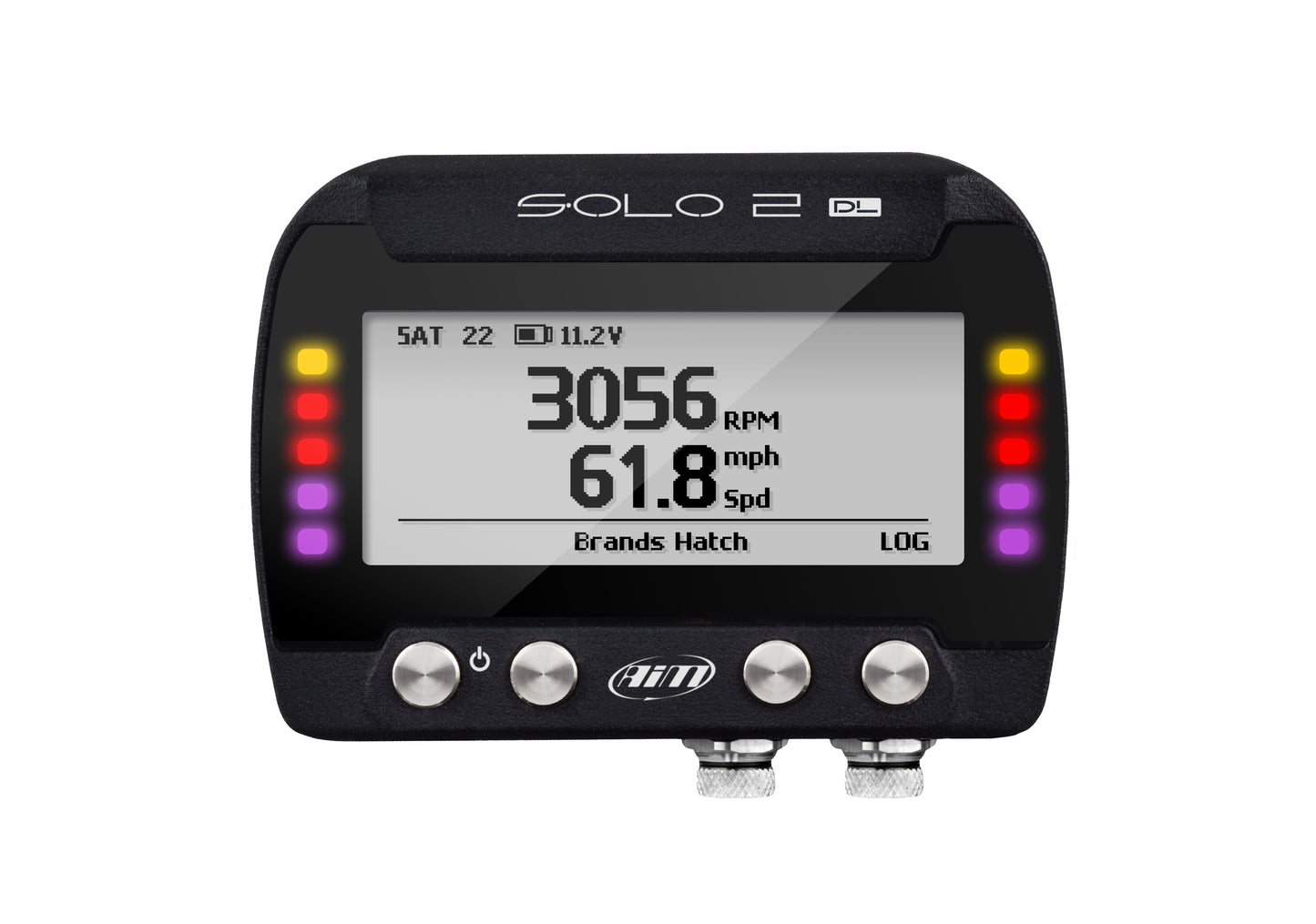

Solo 2 DL features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform. It calculates, shows and record

• Lap times
• Sector times
• Position and vehicle speed
• 3D acceleration and gyro
• ECU connection for receiving, showing and recording all the data directly from your ECU, both for CAN, RS232 and K-line connections
• Low voltage 150-400 V of the coil or from a digital square wave signal (8-50 )
• CAN expansions available:
  • Channel Expansion for getting four analog channels, such as potentiometers, pressure sensors or thermoresistences.
  • Wide band Lambda controller with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
  • Get all the data from the ECU, merge them with the GPS information, with the internal inertial platform, from the analog inputs and transmit all the data to the SmartyCam 3 sportcameras, that will show them in overlay in a 60-fps video.


All these possibilities make of Solo 2 DL a true complete datalogger,
that records your data in the huge 4 gigabytes internal memory for further analysis.

Main Features

Lap Times and Sector Times

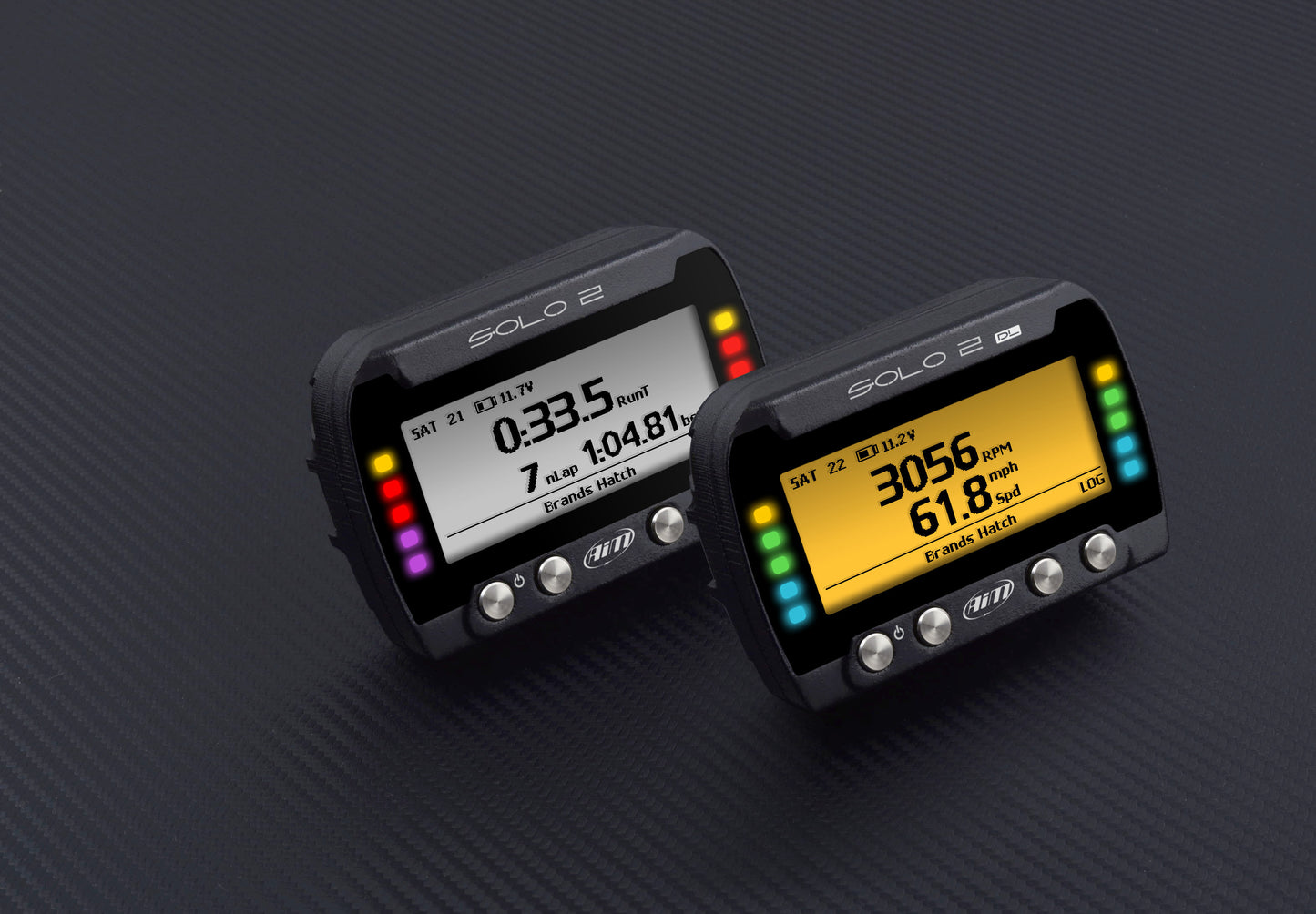

Solo 2 and Solo 2 DL automatically calculate the lap times, thanks to their internal database including thousands of tracks all over the world: when you turn them ON, they automatically recognize the track where you are going to drive and get the information about the Starting Line Position and the Time Zone.

Position and speed on track
Position and speed on track are recorded 25 times per second. Thanks to the four constellations that Solo 2 and Solo 2 DL manage, the precision is generally under the 0.5 mt.

3D Accelerations and Gyro - The inertial platform at 100 Hz gives the possibility to calculate roll, pitch and yaw.

Predictive Lap Time, based upon:

• Best lap of the day
• Best lap of the session
• Previous lap
• User reference lap
