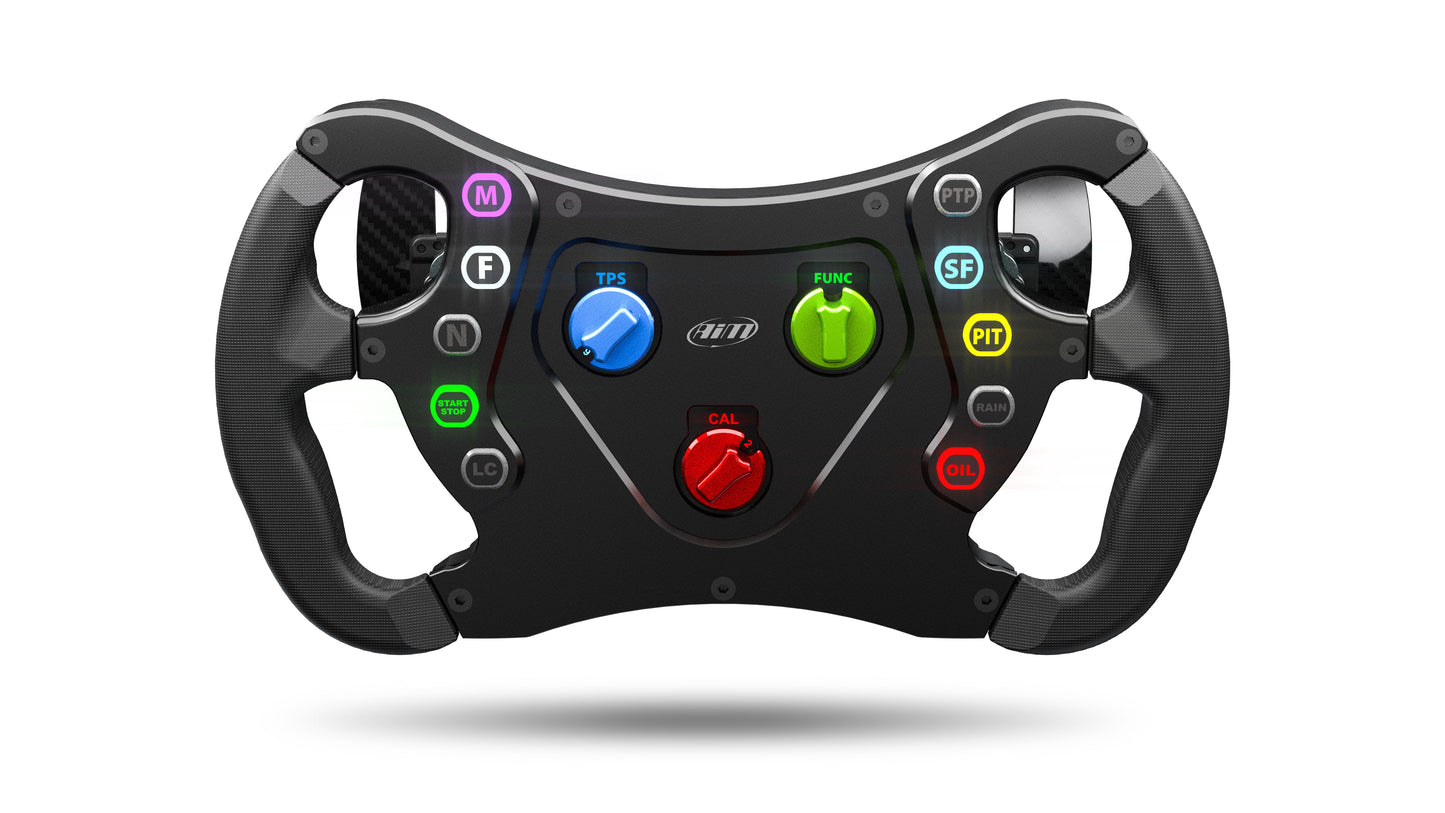

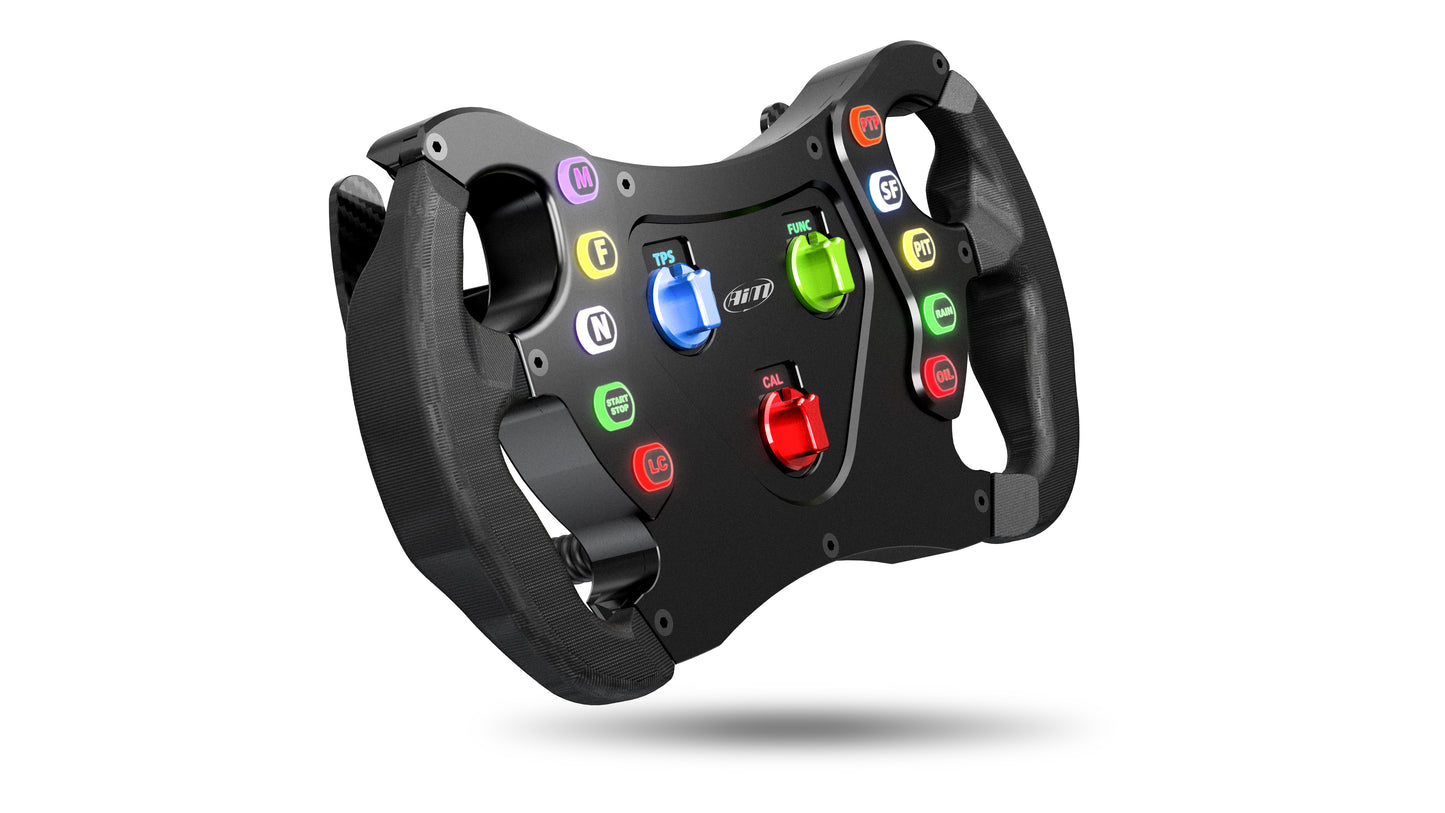

GT32 steering wheels transmit in a freely configurable CAN connection the status of 8 pushbuttons and 3 rotary switches plus more 2 pushbuttons in free contacts connections. It features also 2 (optional) carbon fiber paddle shifters with a precise magnetic system.

Buttons and rotary switches

• Reconfigurable
• Momentary, toggle and multi-status
• 2 pushbuttons in free contacts

RGB LEDs

• Programmable
• Frames and icons backlighted
• Continuous + 2 blinking mode

Paddle shifters (optional)

• CAN messages
• Free contacts

Connection

• ECU CAN

ON/OFF feature

• Status restore option

Pushbuttons configuration
The RGB LEDs behind all 10 pushbuttons plus back-lit multi-position switches are designed to instantly find the right input even in the most intense moment of the race.

LEDs can be fully programmed via RaceStudio 3; they can work as momentary, toggle or multi-status and each option can be configured depending on the length of time the button is pressed or on other user-predetermined conditions according to specific needs.


MOMENTARY
The pushbutton status is ON when the pushbutton is pushed.
TOGGLE
The pushbutton status changes from ON to OFF every time the pushbutton is pushed.
MULTI-STATUS
The pushbutton value changes from 0 to a MAX value every time the pushbutton is pushed.


CAN Output
The data stream of each button can be managed in the CAN output.
Through this function you can customize once more your own
configuration setting up each detail:

• Number of bytes allocated
• Data length code
• Byte order
• Frequency from 1 Hz to 100 Hz


CAN messages configuration

The status of the pushbuttons is transmitted at fixed frequency or/and when it changes.
The CAN messages as frequency, IDs, baud rate, endian and contents can be freely configured.
The status of every pushbutton at the power OFF can be hold at the next power ON.
GT32 Standalone can manage a CAN INPUT protocol, in order to give a feedback, trough the color LEDs, based upon the information received.

Replaceable inserts
It is possible to choose among a wide range of inserts included in the kit. You'll have the possibility to create your own GT32 steering wheel based on your specific needs. See document above for complete insert information.

Precise and solid shifting

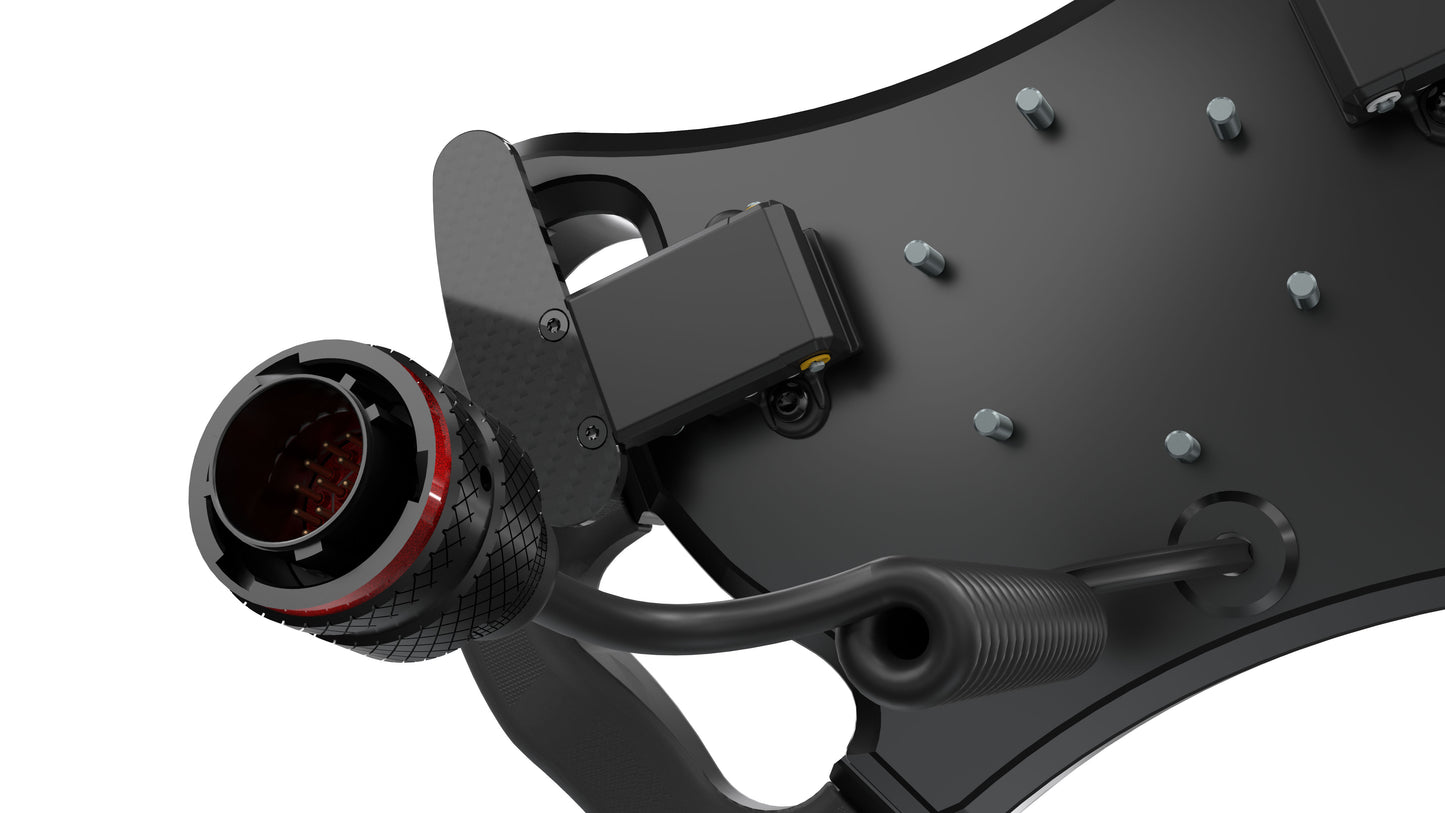

The new (optional) magnetic carbon fiber paddle shifters guarantee high accuracy and a strong feedback for the shifting, allow downshifting and upshifting with great confidence. Paddle shifters feature free contacts on dedicated pins of the Autosport connector and/or CAN messages communication.
