Paragon 6 Piston Caliper Spare Part Kits

CALIPER REBUILD INSTRUCTIONS

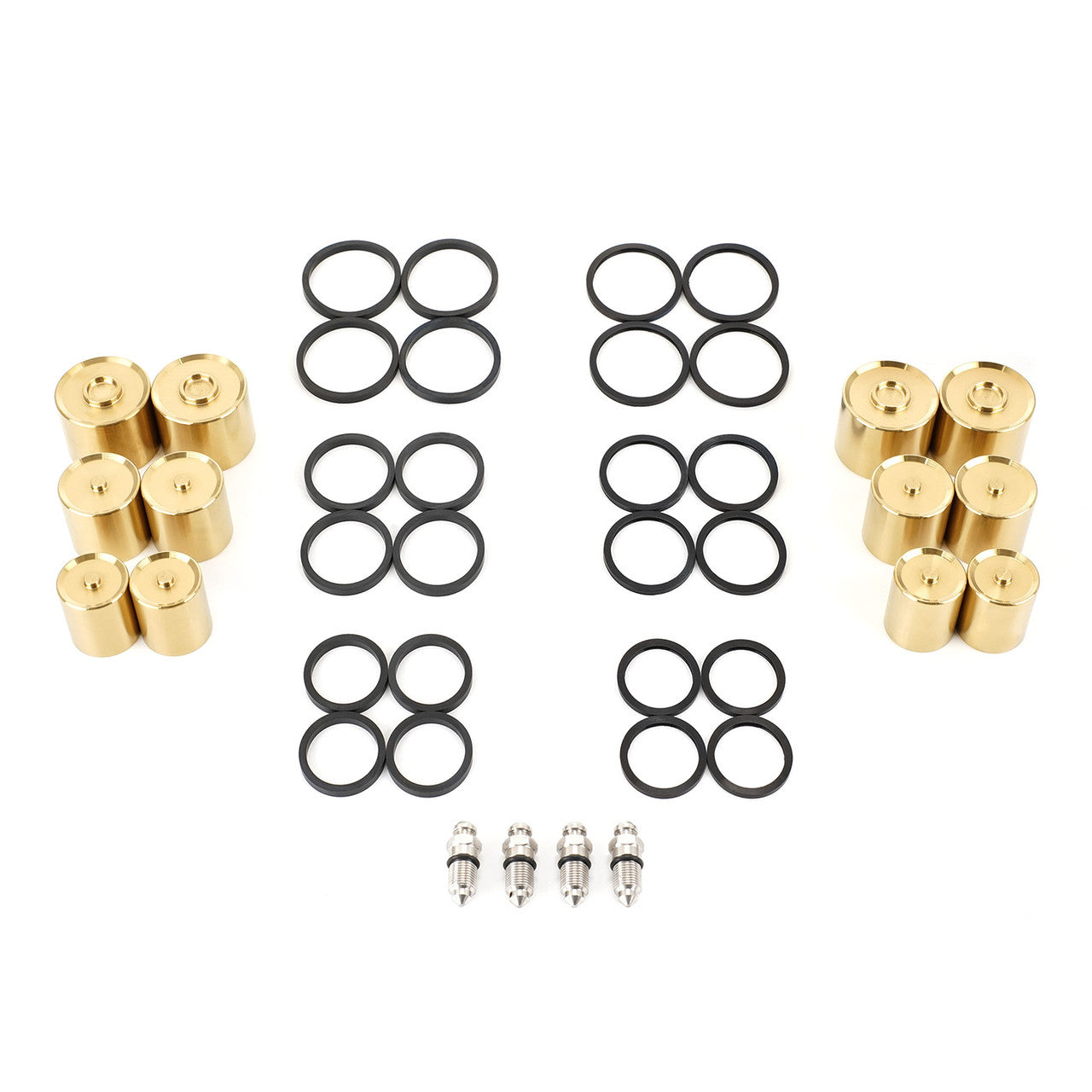

Paragon PA015 / PA035 Caliper Piston Kit - CEJ

Piston kit for the PA015 / PA035 6 piston calipers. Features high temperature seals and Titanium Nitride (TiN) coated stainless steel pistons for outstanding performance and durability under harsh track conditions. Includes all components needed for a complete brake caliper rebuild.

One piston kit needed per pair of calipers

Includes:

• 27mm stainless steel pistons x 4
• 31.8mm stainless steel pistons x 4
• 38.1mm stainless steel pistons x 4
• 27mm high temperature piston seals x 4
• 31.8mm high temperature piston seals x 4
• 38.1mm high temperature piston seals x 4
• 27mm high temperature dust seals x 4
• 31.8mm high temperature dust seals x 4
• 38.1mm high temperature dust seals x 4
• Stainless steel bleed screws w/ o-rings x 4

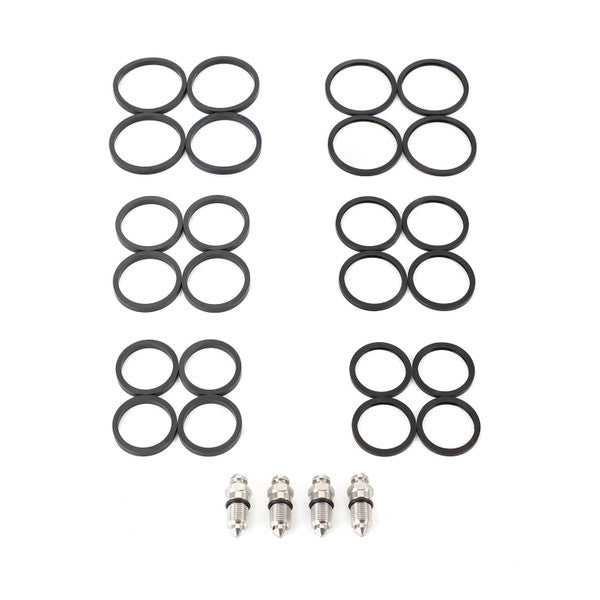

Paragon PA015 / PA035 Caliper Rebuild Seal Kit - CEJ

Seal kit for the PA015 6 piston calipers. Features high temperature seals for outstanding heat resistance and longevity under harsh track conditions. Includes all components needed to rebuild a pair of brake calipers.

One seal kit needed per pair of calipers

Includes:

• 27mm high temperature piston seals x 4
• 31.8mm high temperature piston seals x 4
• 38.1mm high temperature piston seals x 4
• 27mm high temperature dust seals x 4
• 31.8mm high temperature dust seals x 4
• 38.1mm high temperature dust seals x 4
• Stainless steel bleed screws w/ o-rings x 4

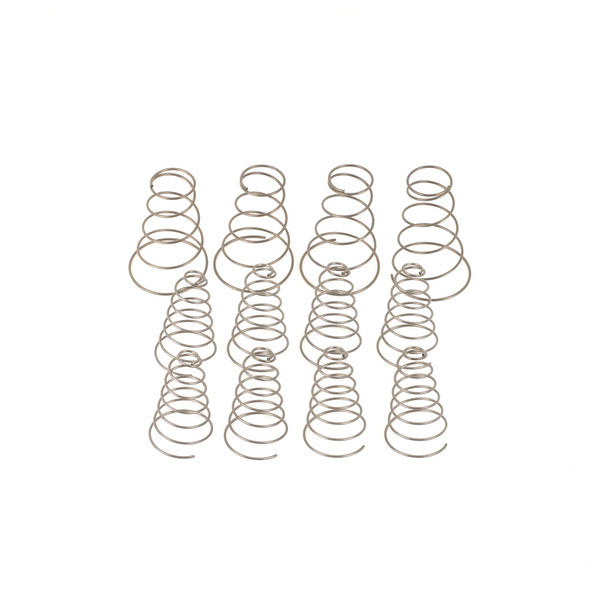

Paragon Replacement Anti-knockback Spring Kit - Paragon PA015 / PA035 Brake Caliper

Lateral side-loading forces during hard cornering may deflect the wheel hubs, hub bearings, wheels, and rotors, etc. As a result the pads are pushed farther away and the caliper pistons further into their bores, which lead to pad knockback. The driver may need to tap the pedal lightly when approaching the braking zone.

These anti-knockback springs can help minimize pad knockback by putting some tension/preload on the back side of the pistons.

One Anti-knockback Spring Kit needed per pair of calipers

Includes:

• Spring (4 lb) x 12

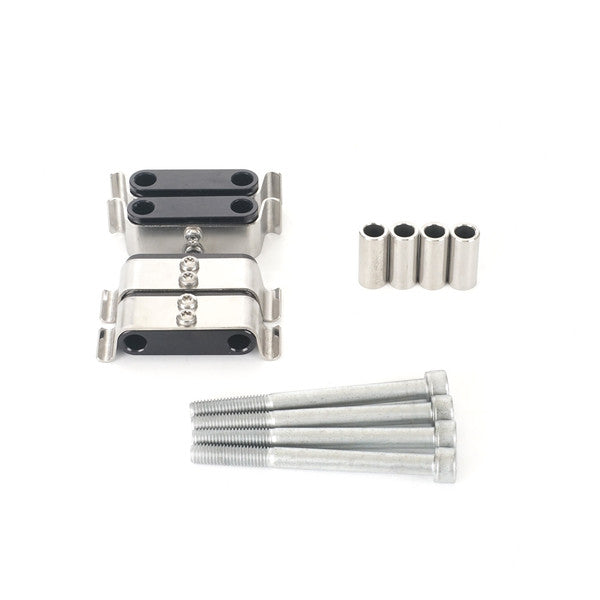

Paragon Replacement Anti-rattle Pad Retainer Kit - Paragon PA015 / PA035 Brake Caliper

Anti-rattle pad retainers for the Paragon PA015 / PA035 brake calipers. Hard anodized for high strength and durability. Features stainless steel hardware for improved corrosion resistance. They place a small amount of tension/preload on the top of the brake pad, effectively reducing its movement inside the caliper.

One Pad Retainer kit needed per pair of calipers

Includes:

• Pad tension block x 4
• Stainless steel tube x 4
• Bolt x 4

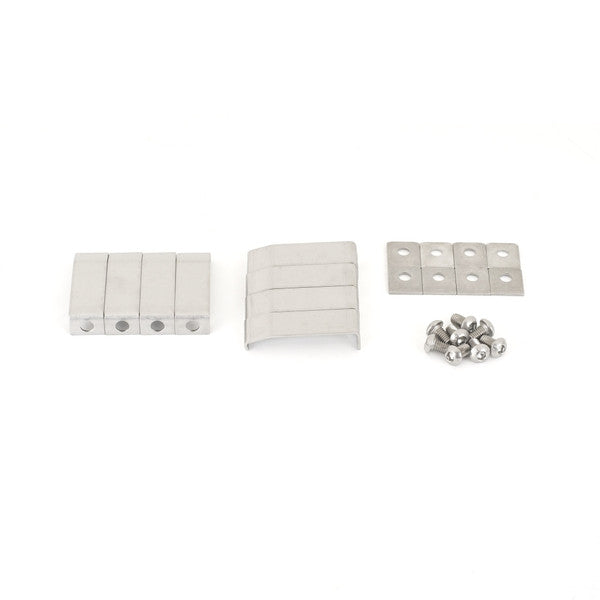

Paragon Replacement Abutment Plate Kit - Paragon PA015 / PA035 Brake Caliper

Replacement stainless steel abutment plates (wear plates) to prevent the brake pad backing plate from wearing and digging into the caliper’s aluminum body which can lead to sticking and uneven/accelerated pad wear.

One Abutment Plate kit needed per pair of calipers

Includes:

• Stainless steel abutment plate x 8
• Square stainless steel plate x 8
• Bolt x 8

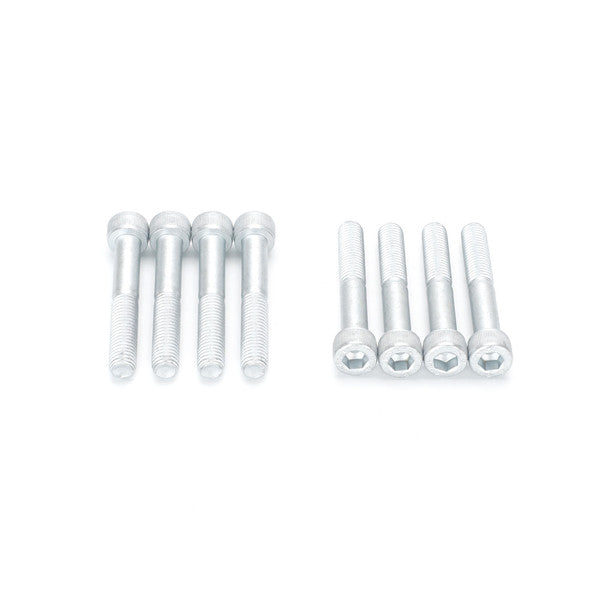

Paragon PA035 Brake Caliper Body Replacement Bolt Kit

Corrosion resistance hardware.

One body bolt kit needed per pair of calipers

Includes:

• Bolt x 8

Paragon PA015 Brake Caliper Body Replacement Bolt Kit

Corrosion resistance hardware.

One body bolt kit needed per pair of calipers

Includes:

• Bolt x 8

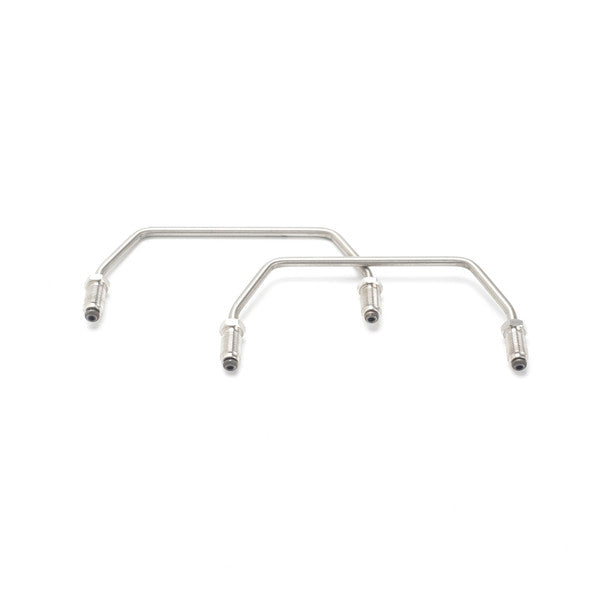

Paragon Replacement Crossover Tube Kit - Paragon PA015 Brake Caliper

Corrosion resistant stainless steel replacement crossover pipes for the PA015 brake calipers.

One crossover tube kit needed per pair of calipers

Includes:

• Crossover tube x 2

Paragon Replacement Crossover Tube Kit - Paragon PA035 Brake Caliper

Corrosion resistant stainless steel replacement crossover pipes for the PA035 brake calipers.

One crossover tube kit needed per pair of calipers

Includes:

• Crossover tube x 2
