SSPDM

Super Simple PDM. Doesn't get easier than that. Our no-configuration PDM uses robust and replaceable, high quality, micro A automotive relays and blade fuses to switch four independent outputs. Four 5-12V I/O inputs are also available.

Four SSPDM modules can be used on a single CAN bus by simply configuring a set of DIP switches on the unit itself.

System Requirements: For plug-and-play operation pair the SSPDM with any of our Gateway or Power Modules, including the EGWS. Most button panels can be easily configured to control the SSPDM. Flight offers off-the-shelf configurations for AIM Open button panels. The SSPDM may be used stand-alone with any system by simply sending the right CAN packets, provided in the documentation.

Current rating per output: 25A continuous

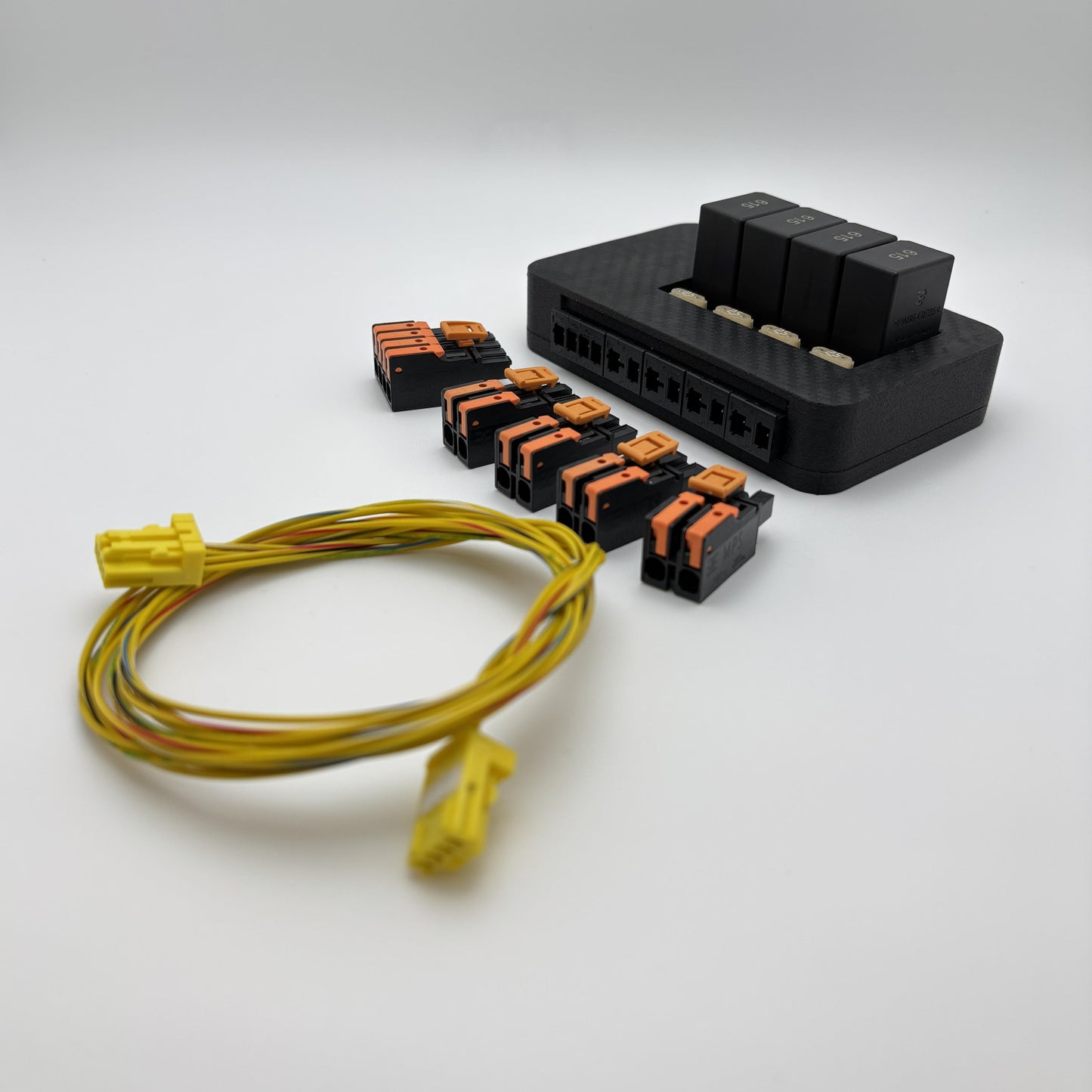

Includes SSPDM, 3 foot data cable, four relays, four 25A fuses, 5x toolless locking connectors.
